Biohort Casanova Metal Shed 4mx4m

Biohort Casanova Metal Shed

*For a full list of Accessories please see below*

We have now added a new fully glazed wall element to the existing selection of window, door and garage door options; it has been developed with the aim of increasing the comfort CasaNova^® already offers and leaves you free to choose how you wish to use your CasaNova^®; as an equipment store, a workshop or a hobby room; or as a storage space for your plants during winter or thanks to the addition of our new sauna module a place to sweat and relax.

Innumerable Advantages:

• Made of high-quality materials: extruded aluminium sections and composite panels made of hot-dipped galvanised, polyamide coated steel plate
  with an insulated core of 40mm expanded polystyrene (EPS20)
• Can be heated thanks to insulated design: U-value of sidewalls = 0,76 W/(m²K)
• Sturdy construction: will withstand snow loads of up to 215 kg/m² (minus additional roof loading such as 'green roof')
• Screws and hinges made from stainless steel
• No screws or bolts visible from the outside
• 20 year guarantee against corrosion
• Lifelong maintenance free – no need for additional painting
• Secure against unwanted intrusion - supplied with cylinder lock
• "Green Roof" option possibility
• Flexible assembly thanks to modular design
• Detailed assembly manual incl. 3D-drawings

Colour Options:

Metallic Silver

Standard interior colour: grey-white

Note: the product colours shown on our website may differ from the real product colours!

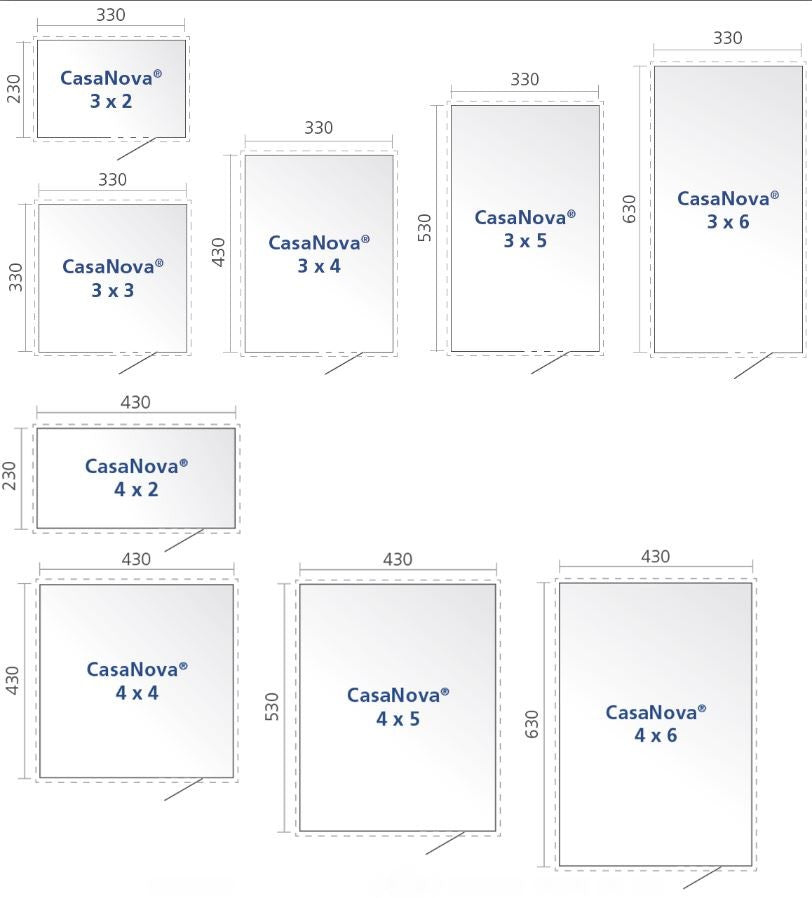

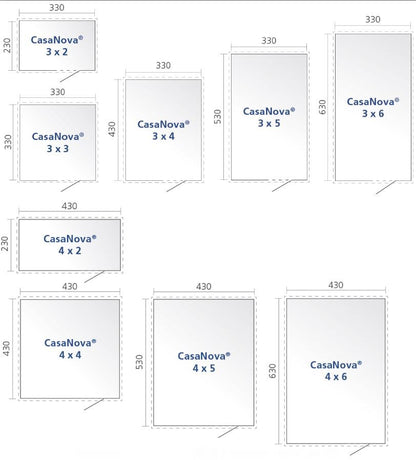

Size Options:

(In cm. Exterior dimensions include roof overhang)







Illustrated measurements are exterior dimensions, dashed lines indicate roof overhang

CasaNova is Available in 9 Sizes:

• 3m x 2m
• 3m x 3m
• 3m x 4m
• 3m x 5m
• 3m x 6m
• 4m x 2m
• 4m x 4m
• 4m x 5m
• 4m x 6m

Standard Features Include:

Supplied with stainless steel door handle and cylinder lock (incl. spare key), prevents unwanted access and is approved by insurance companies. The door is designed to be particularly robust and stable.

Dimensions: 90x198 cm.

The direction in which the door opens (to the left or right) can be chosen by the customer. The door can be fitted on all sides.



Gas Assisted Spring Damper

Assists not only when opening and closing the door, but also holds the door in the desired position.

360 Acrylic Glass-Fanlight

Ensures adequate daylight illumination from all sides within CasaNova.

The acrylic glass fanlight can be opened on 2 sides to improve ventilation.

Low Ground Sill

Allows heavy equipment to be moved in and out of CasaNova; smoothly, comfortably and with a minimum of effort.
Height: 26mm.

2 Gutters with rainwater downpipes

Guarantee a smooth and efficient run-off of rainwater from the roof.



 Modern Flat roof

Constructed from 3-layer plywood panels and robust UV resistant and root proof EPDM rubber sheeting. The roof can be insulated on-site with XPS-hard foam panels. The roof construction makes a “green roof” a real practical possibility.
The sloped roof with an angle of 1% is invisible from outside and ensures good drainage of water.

Accessories for the CasaNova Range

For more information on these products or to add them to your building, please get in touch by clicking the link below:

 https://www.taylorsgardenbuildings.co.uk/?target=advanced_contact_us

New: The CasaNova Sauna Module

The Biohort Thermarium manufactured in a 5-corner version, allows you to fulfil the dream of owning your own sauna. With a floor space of 200 x 200 cm (interior dimensions 180 x 180 cm) it will comfortably accommodate two people. The user friendly 6 kW sauna heater with variably adjustable thermostat provides the necessary heat. Scandinavian spruce décor guarantees the original Finnish sauna character.

The Thermarium is fully equipped with corner lights, comfortable loungers, an hourglass, thermometer and complete infusion package, so that you can immediately enjoy the pleasure of using the sauna!

For those who enjoy DIY, self-assembly should present no problems thanks to the illustrated, detailed manual included in the delivery.

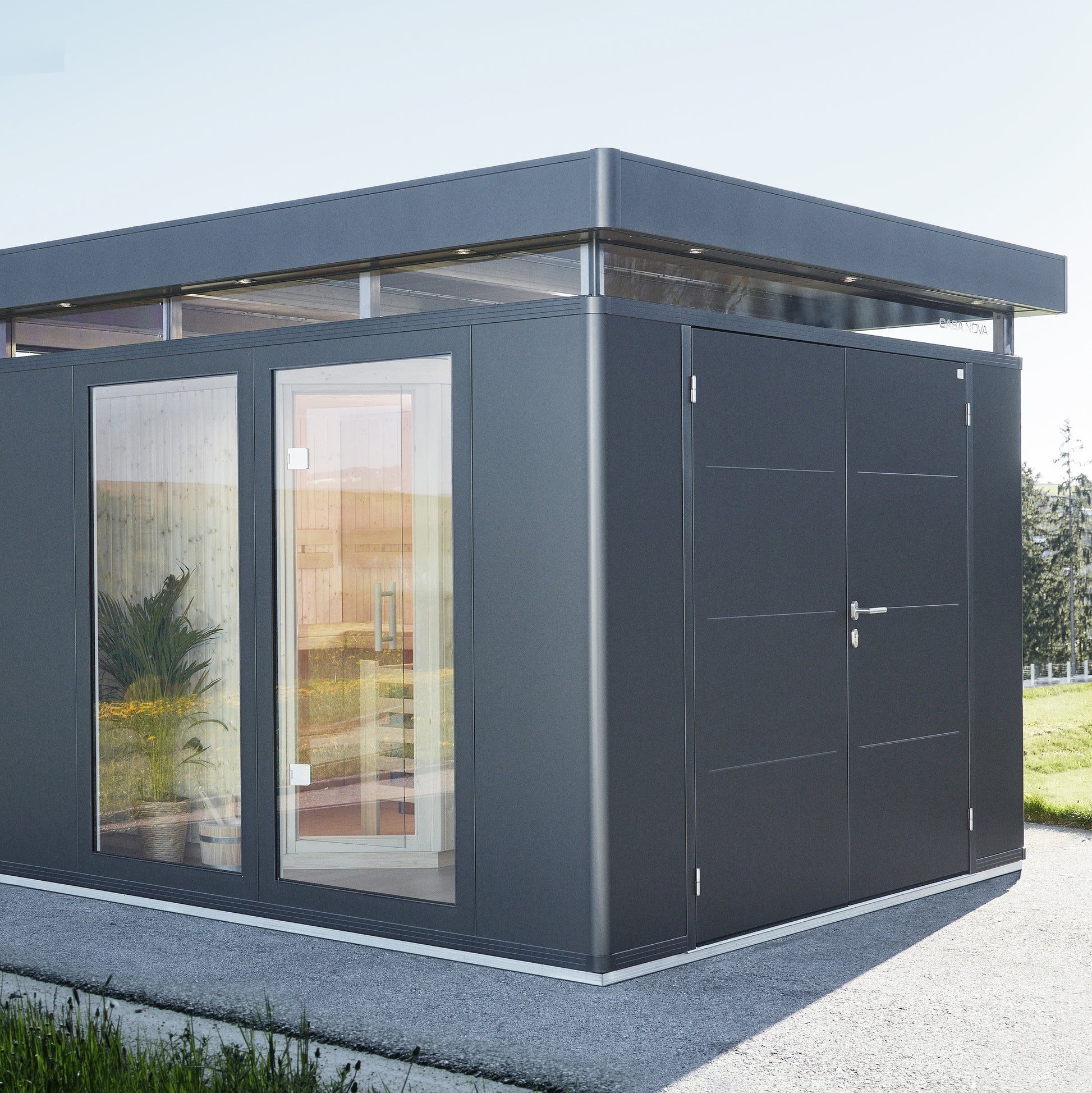

New: Full Length Glazed Wall Elements

The new floor to ceiling glass wall elements enhance the already elegant appearance of CasaNova^® and allow extra daylight into the interior, adding to the feeling of comfort and well-being. With a fixed, insulated glass surface of 83 x 181 cm (W x H) and depending on the wall length several elements can be positioned next to one another but, please note; cannot be used as corner elements. The addition helps to visually “lighten” the appearance of CasaNova^® and adds to its already imposing appearance and modern design.

Extra Charge for CasaNova Glass Door

Doors made of insulating glass make your CasaNova look particularly inviting and flood it with daylight. So you can also enjoy the idyll of the garden optimally from inside. A second door panel is possible.

If you want a glass door as an additional door or double door, you must order the additional door and the second door panel separately.

Tilt and Turn Windows
This high quality window with insulating glass allows extra daylight in the design-annexe (frame size 83 x 65 cm, fitted height 119 cm from lower edge of outer frame). The hinge position can be chosen as required. Because the side wall panels are already cut out by Biohort, a subsequent installation is not possible.

Electric Mounting Panel

Discrete, hidden cable routing and easy assembly of switches and sockets (electrical equipment in photo not included).

External Spotlights Cut-Outs for Spots

This makes your CasaNova into a real eyecatcher. The cut-outs on the front allow three spotlights to be installed (not included in delivery).

Second Door Wing

Enables larger equipment to be more easily moved in and out of CasaNova. With this, the complete door opening will be extended to 187 x 198 cm (WxH). The delivery also includes a double locking mechanism, a gas-assisted spring damper and a threshold. The standard position is on the front or back wall. The installation into a sidewall is possible at additional cost. A subsequent installation of the 2nd door wing is not possible.

Extra Door

Can be fitted in any wall of the Annexe and makes CasaNova accessible from two sides. Included in the delivery are a stainless steel door handle, a cylinder lock, a gas assisted spring damper and an extra threshold. Size: 90x198 cm, hinge position can be chosen as required. A subsequent installation of an extra door is not possible.

Hook Set

Consists of a combination hook, a handle hook and a shovel hook on a wall rack, for slotting between 2 support rails (optionally available).

If the hook set shall be positioned next to a corner, you need the shorter option with a length of 93 cm (standard: 99 cm).

Acrylic Glass (No sliding function)
For optimal insulation, the acrylic glass fanlight is also available as double glazing. Please note, that the sliding function of the side glass elements is not available once this option has been fitted.

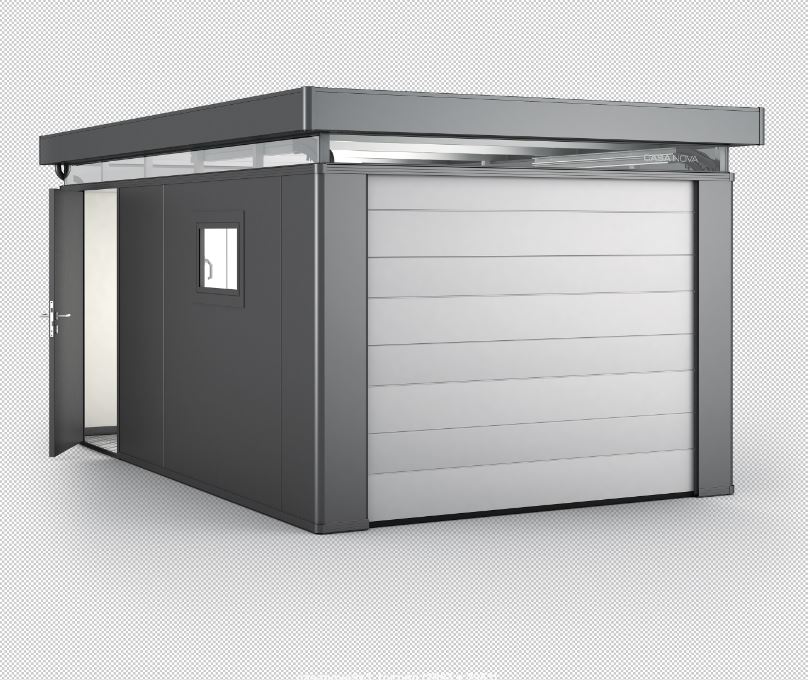

Overhead Sectional Door

For anyone who places a high value on comfort. The 42 mm thick door elements ensure stability and the best insulation. Integrated finger trap protection, anti-fall protection system and an optional electric motor with remote control are just a few of the numerous advantages provided by this garage door.

Dimensions of door opening: 236 x 200 cm (W x H). Can only be installed in the front or back walls! Suitable for the following CasaNova-sizes: 3x3 (without electric motor), 3x4, 3x5, 3x6, 4x4, 4x5 and 4x6.

Please note: The sectional overhead garage door cannot be installed afterwards.

All Products are supplied flat packed for self assembly.

* Delivery surcharges will apply to offshore destinations OR areas in Scotland outside the Glasgow and Edinburgh post codes. Please contact our friendly team on 01604 780 350 for further details, as your order may be delayed at point of order.
